Manufacturer, exporter & suppliers of ASME/ANSI B16.5 Carbon Steel Blind Flanges, Stainless Steel Blind Flanges, Alloy Steel Blind Flanges, ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 , Steel RST37.2, C22.8 In India
Stainless Steel Flanges Manufacturer Of A105 Flanges Supplier, Carbon Steel Flanges, Stainless Steel 304L Flanges, Stainless Steel 316L Flanges, Alloy Steel Flanges, A350 LF2 Flanges, Stainless Steel 904L Flanges, Large Diameter Flanges, Weld Neck Flanges, Socket Weld Flanges, Lap Joint Flanges, Pipe Flanges, Blind Flanges Exporter, Blockodised Finish Flanges, Hot Dip Gavlvanised Flanges, Threaded Flanges, Chrome Moly Flanges Exporter in India, ANSI Flanges, ASME Flanges, DIN Standard Flanges Exporter, Forged Rings, Forged Circles Exporter in India.
Sarda Pipes & Fittings is one of the largest Exporters, Manufacturers and suppliers of Flanges in India. We offer an extensive range of Flanges to our esteemed clients and are available at reasonable prices. While manufacturing these Flanges, our experts make use of advanced technology along with high-grade of raw material in it.
Sarda Pipes & Fittings is one of the leading Blind Flanges manufacturers and supplier in India, we are manufacturer of Blind Flanges in various types of carbon steel, alloy steel, stainless steel and duplex steel flanges as per customer recognised material standard (ASME/ANSI/DIN). The flanges are also manufactured as per customer specific requirements/drawings.
We specialise in manufacturing a comprehensive range of carbon steel flanges, alloy steel flanges and stainless steel flanges from ½”NB to 48”NB. Steel flanges are widely used as connectors in piping systems to connect pipes to pipes, tees, reducers, elbows, valves and other piping equipments.
 |
 |
| Size | : | 1/8" NB TO 48"NB. |
| Class | : | 150#, 300#,400 #,600#,900#, 1500# & 2500 #. |
| Standards | : | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 |
| DIN | : | DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 |
| B.S | : | BS4504 , BS4504, BS1560, BS10 |
| Type | : | Threaded, Slip-On, Welding Neck |
We manufacturer steel flanges which meet all international quality standards such as DIN, EN1092-1, BS4504, ANSI, API, MSS, AWWA, UNI, JIS, SANS, GOST, NFE, ISO, AS, NS Blind Flanges etc. We are manufacturing 75lbs, 150lbs, 300lbs, 600lbs, 900lbs, 1500lbs, 2500lbs, PN6, PN10, PN16, PN25, PN40, PN63, PN64, PN100, GOST 12820 and GOST 12821, PN0.6MPA, PN1.0MPA, PN1.6MPA, PN2.5MPA, PN4.0MPA, SANS1123 or SABS1123, 600kpa, 1000kpa, 1600kpa, 2500kpa, 4000kpa flange ratings as per application or client’s requirement.
Lowest Price In India On Blind Flanges. High Quality Reducing Flange Like Class 150 Blind Flanges, Class 300 Blind Flanges, Class 600 Blind Flanges, Class 900 Blind Flanges, Class 1500 Blind Flanges & Class 2500 Blind Flanges Suppliers In India
Size: 1/2″ (15 NB) to 48″ (1200NB)
Standards: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Blind Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8
Stainless Steel Blind Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L
Alloy Steel Blind Flanges: ASTM A182 F1, F5, F9, F11, F22, F91
Special Alloy Blind Flanges: Duplex, Super Duplex, Nickel Alloys
Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Value Added Services: CNC Machining, Customised Flanges
Blind Flanges Specification
| Type | Blind Flanges, BL Flanges, ASME 16.5 Blind Flanges / BLRF Flanges |
|---|---|
| Size | ½” (15 NB) to 48″ (1200NB) |
| Pressure Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
| Material | Stainless Steel Blind Flanges: ASTM A182 F202, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 316LN, 310S, 317L, 321, 410, 420, 440C, 202. F904LCarbon Steel Blind Flanges: ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70Duplex Steel Blind Flanges: ASTM / ASME SA 182 F 44 , F 45 , F51 , F 53 , F 55 , F 60 , F 61.Alloy Steel Blind Flanges: ASTM A182 F1, F5, F9, F11, F22, F91Special Alloy Blind Flanges: Duplex, Super Duplex, Nickel AlloysNickel Alloy Blind Flanges: Cupro Nickel (90/10, 70/30, 66/30/2/2), Hastelloy (C-4, C-22, C276, B-2), Nickel (200 / 201 / 205), Monel 400 & K500), Inconel (600, 601, 625 & 825), Incolloy (800, 800H), Alloy 20, Duplex Steel, SS 904L, Titanium (1 & 2) Etc. |
| Specialize | As per drawing |
| Standard | ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN |
| Connection Type | Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue & Groove, Small Tongue & Groove. |
| Flanges Forms | Blind Raise Face -BLRF, Weld Neck Flanges – WNRF, Socket Weld Flanges – SWRF, Slip On Raise Face – SORF, Spectacle Blind, Ring Joint, Large Dia Flanges, Orifice Flanges, Girth Flange, Lap Joint Flanges, Screwed (Threaded) Flanges, Long Weld Neck Flanges, Reducing. |
BLIND FLANGES MATERIAL & GRADES :
Stainless Steel Blind Flanges : ASTM A182, A240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Carbon Steel Blind Flanges : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70
Alloy Steel Blind Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Duplex Steel Blind Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Super Duplex Blind Flanges : ASTM / ASME A/SA 182, A240 F 44, F 45, F51, F 53, F 55, F 60, F 61
Nickel Alloy Blind Flanges : Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 625 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II)
Copper Alloy Blind Flanges : UNS No. C10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500, UNS No. C 70600 (Cu -Ni- 90/10), C 71500 (Cu-Ni-70/30)
Low Temperature Carbon Steel Blind Flanges : ASTM A350, LF2, LF3

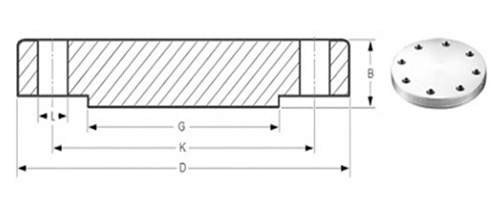

Dimensions of Blind Flanges ASME B16.5
NPS ½
| Class | 150 | 300 | 400 | 600 | 900 | 1500 | 2500 |
| Diameter - D | 90 | 95 | 95 | 95 | 120 | 120 | 135 |
| Height - B | 9.6 | 12.7 | 14.3 | 14.3 | 22.3 | 22.3 | 30.2 |
| 11.2 | 14.3 | 20.7 | 20.7 | 28.7 | 28.7 | 36.6 | |
| Diameter - G | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 |
| Diameter - K | 60.3 | 66.7 | 66.7 | 66.7 | 82.6 | 82.6 | 88.9 |
| Bolt Holes | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Diameter - L | 15.9 | 15.9 | 15.9 | 15.9 | 22.2 | 22.2 | 22.2 |
| Stud Bolts Diameter x Length | |||||||
| Diameter (in) | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 |
| Length (mm) | 55 | 65 | 75 | 75 | 110 | 110 | 120 |
Dimensional Tolerances of Blind Flanges ASME B16.5
| Outside Diameter ≤ 24 = 1.6 mm | > 24 = ± 3.2 mm |
Inside Diameter not applicable |
| Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm |
Outside Diameter of Hub ≤ 12 = + 2.4 mm / - 1.6 mm | ≥ 14 = ± 3.2 mm |
| Diameter of Counterbore not applicable |
Drilling Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle with Respect to Facing ≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max. |
| Thickness ≤ 18 = + 3.2 mm / - 0 | ≥ 20 = + 4.8 mm / - 0 |
Length thru Hub ≤ 18 = + 3.2 mm / - 0.8 mm | ≥ 20 = + 4.8 mm / - 1.6 mm |
Price List Of Blind Flanges
- carbon steel reducer flange
US $0.1-10 / Piece - custom weld neck reducing blind flange
US $0.1-100 / Piece - dn 300 sch80 pipe fitting tee elbow reducer flange for water trans
US $1-99 / Piece - ANSI B16.5 Forged 150lb Reducers Flange
US $0.1-10 / Piece - ANSI B16.5 threaded reducing flange
US $1.5-200 / Piece - a105 carbon steel welding neck reducing flange
US $1-6 / Piece - JIS B2220 weld neck reducing stainless steel blind flange
US $180-430 / Piece - high quality titanium weld neck reducing flange
US $9-149 / Piece - a105 24″x20″ 42 reducing weld neck flange
US $0.1-129 / Piece - forged steel welding neck reducing flange
US $0.2-2000 / Piece - A234 wpb carbon steel reducer flange
1 Piece (Min. Order) - Duplex Stainless Steel Reducing Flange Exporters
US $1000-3000 / Ton - Ansi b16.5 forged stainless steel weld neck reducing flange
US $1-10000 / Ton - socket weld neck reducing hub stainless steel flange
US $1-1000 / Ton - astm a105n carbon steel weld neck reducing flange
US $0.15-10 / Piece - socket weld flange,weld neck reducing flange,a182 f316 stainless steel weld neck flange
US $1-500 / Piece - a105 carbon steel threaded reducer pipe flange
US $1000-2500 / Ton - weld neck reducing flange supplier/price
US $1-500 / Piece - dn100 pn16 weld neck reducing pipe flange
US $0.15-10 / Piece - stainless steel reducing flange
US $2-60 / Piece
